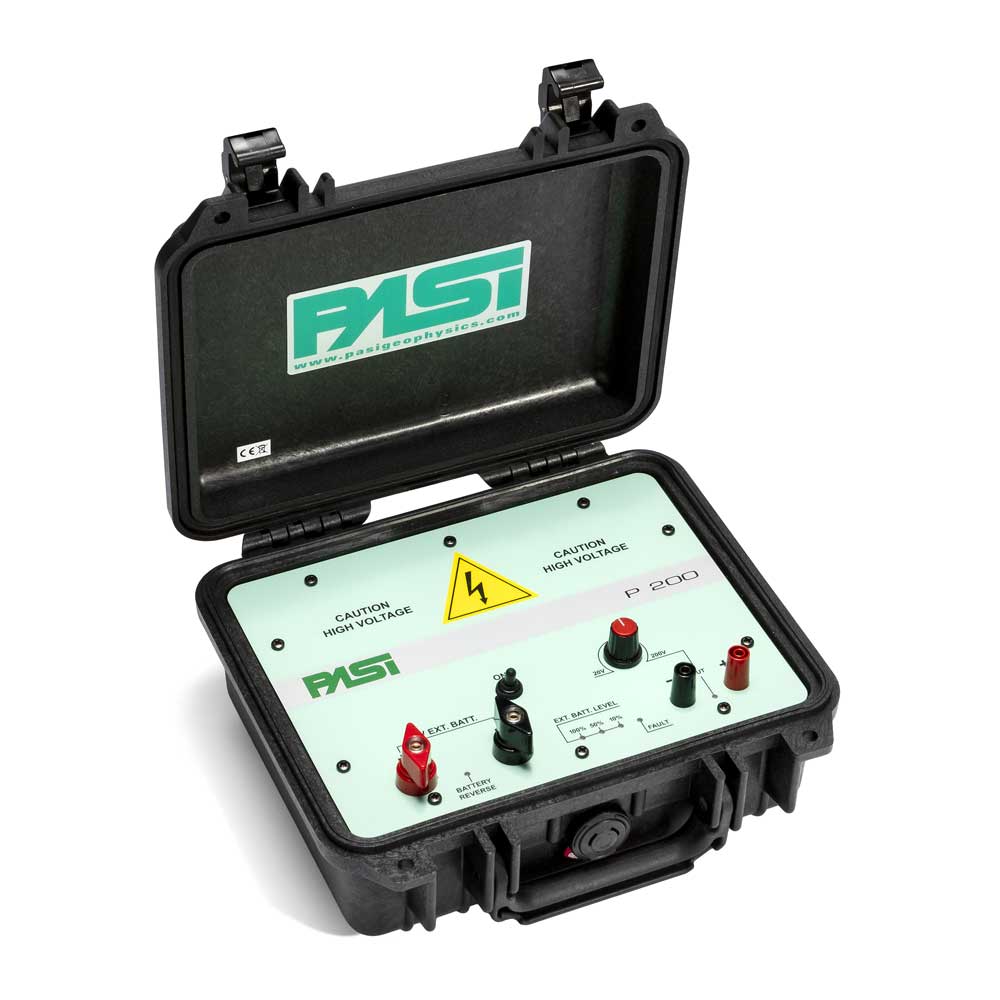

P200

Energizer for earth resistivity measurements

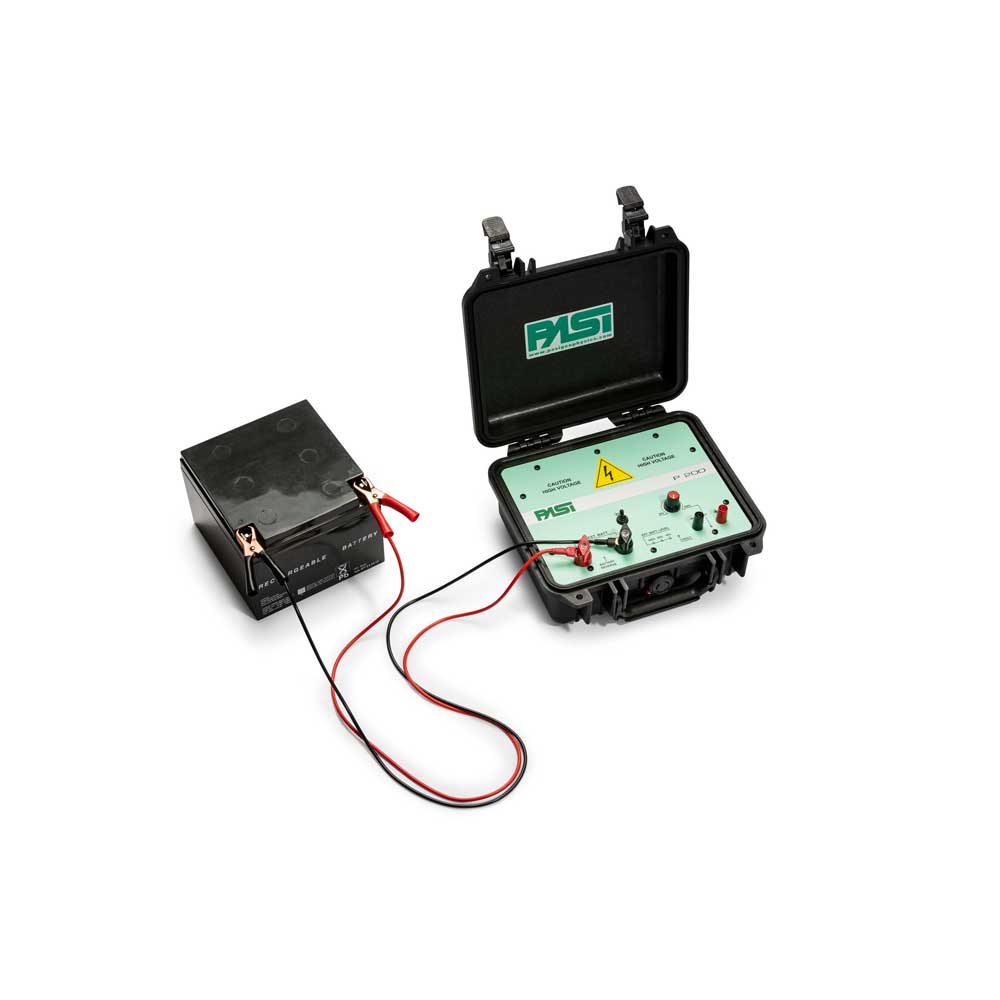

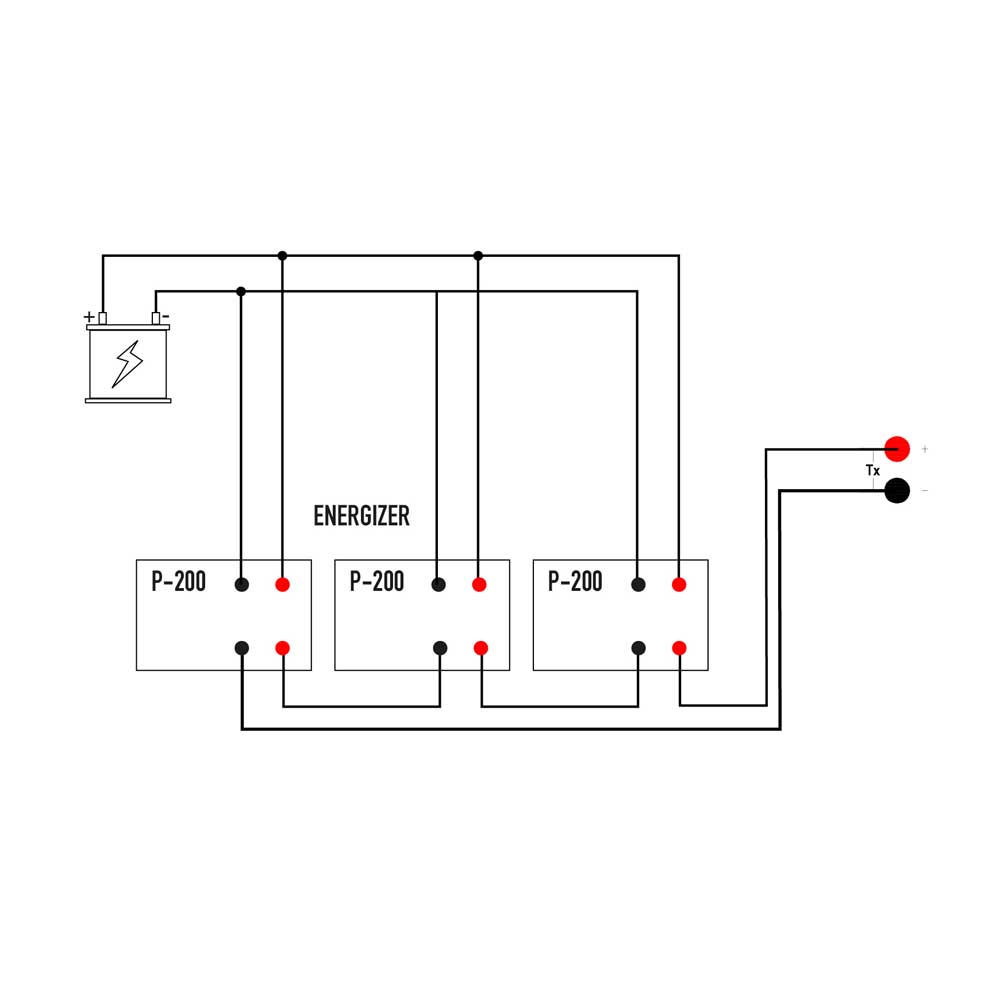

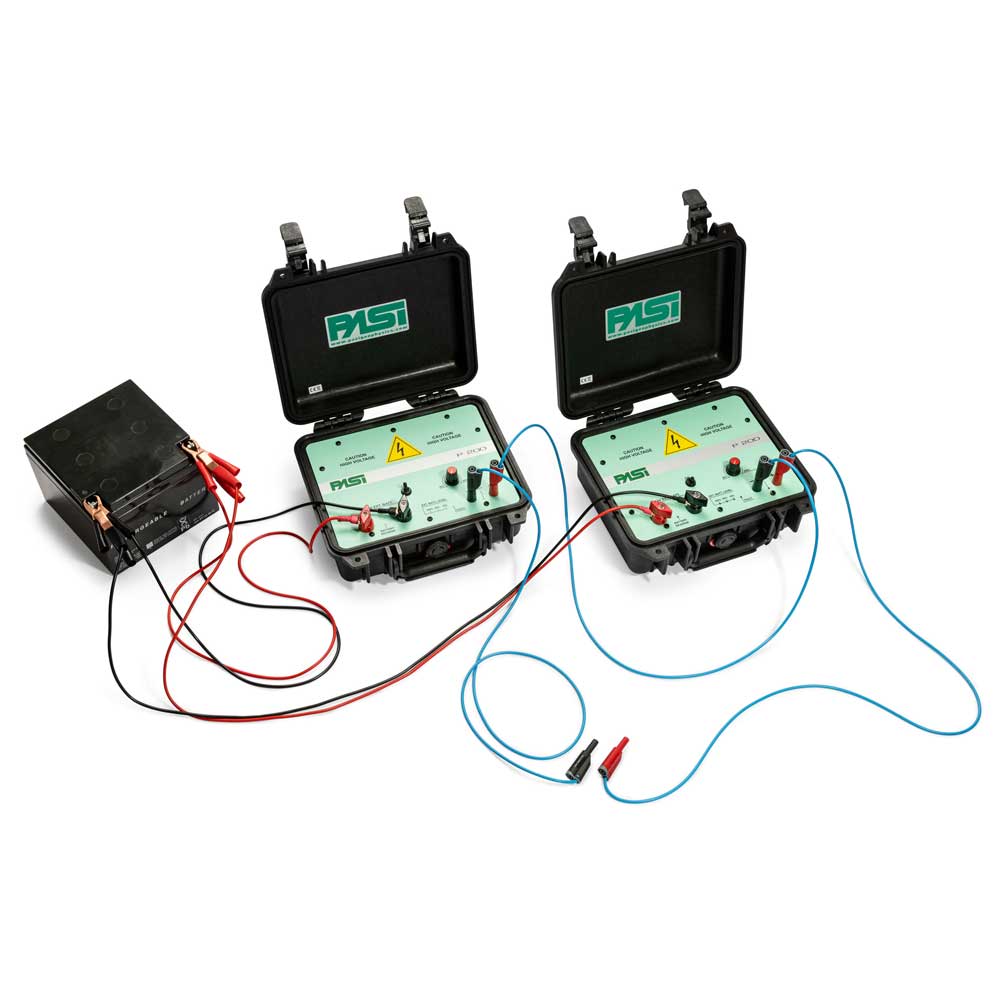

The P200 energizer is the perfect energy source for VES in direct current. Connected to an external 12V battery*, it can deliver from a minimum of 20V to a maximum of 200V, max 1A, in direct current. Up to 5 units can be connected in series to the same appropriate capacity external battery*.

Designed to complete the RM1 earth resistivity meter, the P200 is compatible not only with all PASI previous models, but also with earth resistivity meters of other brands.

* the external 12V battery is not included in the supply
Models
Methodologies

E-Commerce non attivo in questo momento

TECHNICAL SPECIFICATIONS
P200

2-YEAR WARRANTY

Output Voltage
from 20V to 200 V, adjustable
Output Current
1 A max
Ext. Battery Charge
indicator on three levels
Protections
Resettable electronic protection from current overload
Resettable electronic protection from short circuit
LED warning light and electronic block
Battery charger connector protected against polarity inversions
Serialization
possible up to 5xP200 units
Dimensions and weight
270x240x105 mm - 2,7 kg
Shock resistant PELI case IP 67
Technical specifications subject to change without notice
Output Voltage
From 20V to 200 V, adjustable
Output Current
1 A max
Ext. Battery Charge
Indicator on three levels
Protections
Resettable electronic protection from current overload
Resettable electronic protection from short circuit
LED warning light and electronic block
Battery charger connector protected against polarity inversions
Serialization
Possible up to 5xP200 units
Dimensions and weight
270x240x105 mm - 2,7 kg Shock resistant PELI case IP 67
Technical specifications subject to change without notice
