3DLG-2

3D land geophone (2Hz)

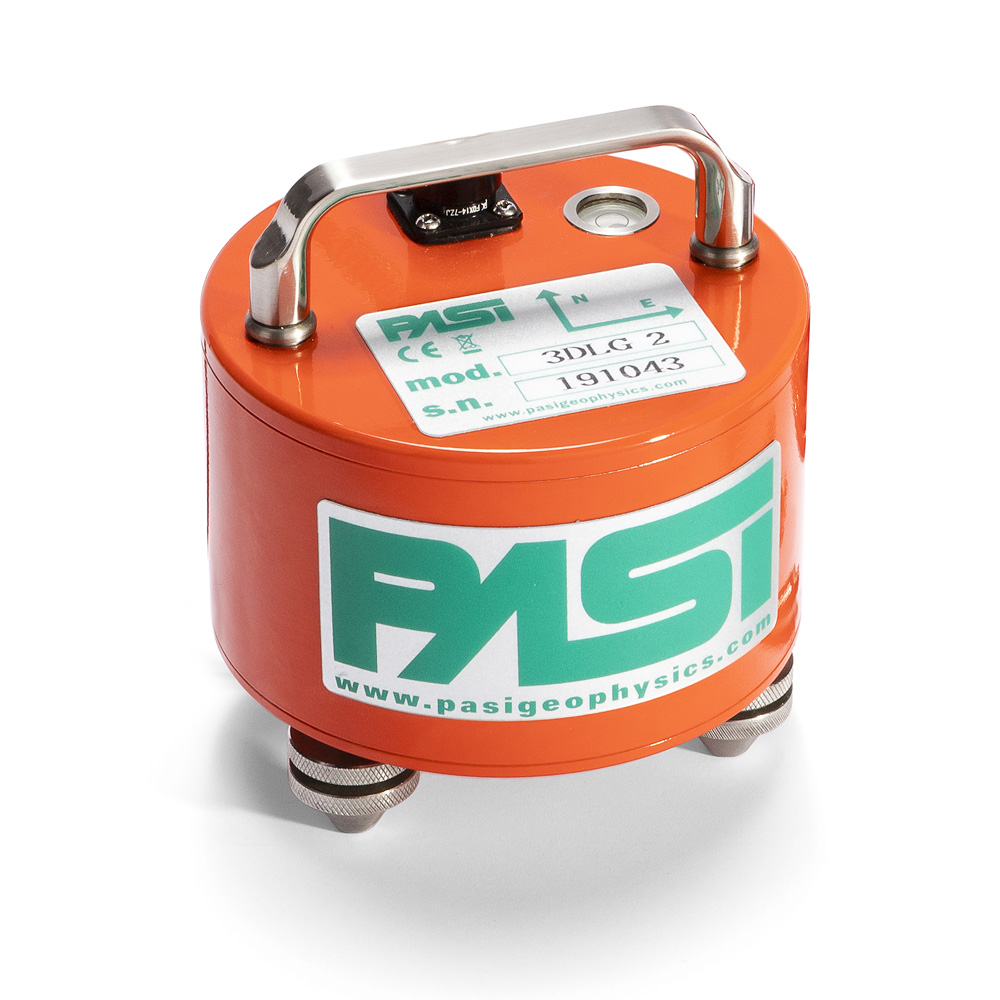

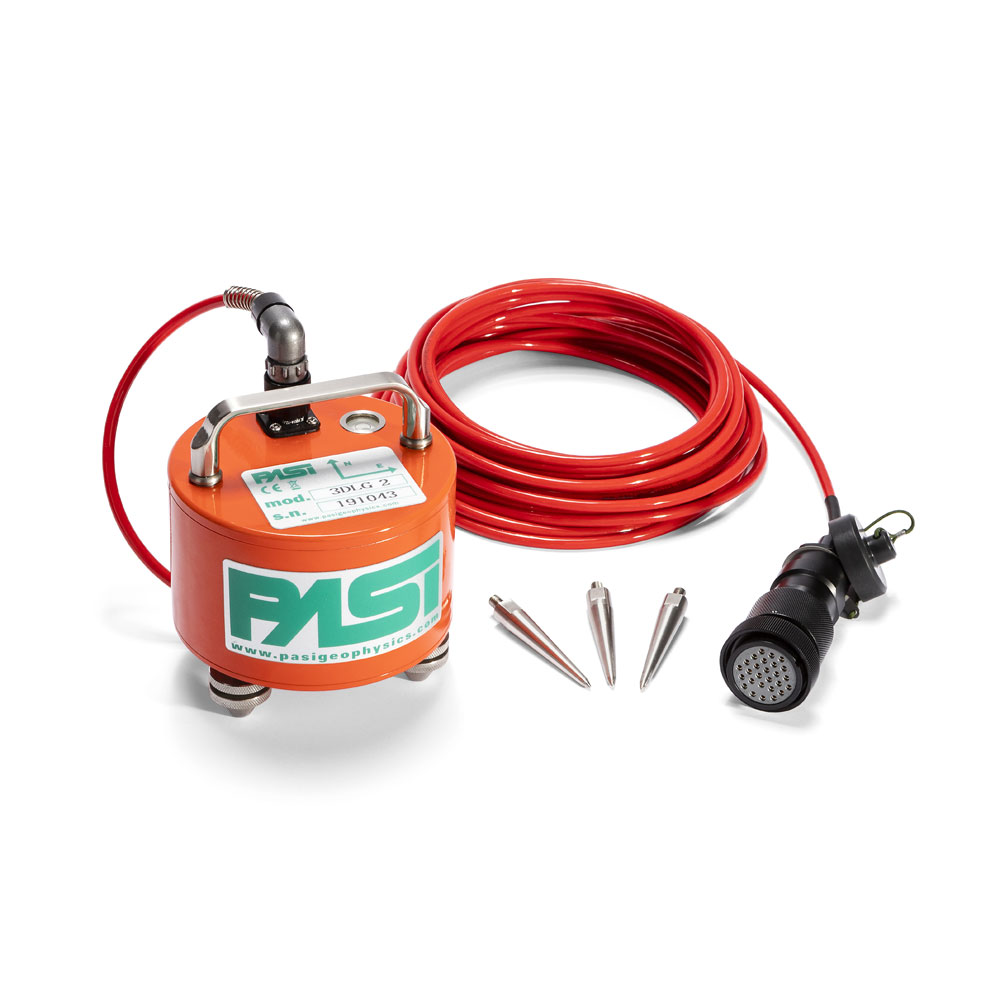

The 3D Land Geophone 3DLG-2 is the ideal accessory to add to your seismic instrumentation and perform HVSR, MASW and Vibration Analysis. One vertical and two horizontal high-performing sensors, with 2Hz resonance frequency and properly coupled, are mounted in a robust waterproof case, delivered with adjustable feet and inter-changeable rods. 3DLG-2 has a connector that blocks the sensor elements to avoid damage during handling. The system is supplied complete with connecting cable for the seismograph and a carrying case.

Models
Methodologies

E-Commerce non attivo in questo momento

TECHNICAL SPECIFICATIONS
3DLG-2



Nat.Resonance Frequency
2 Hz ± 10%
Sensibility
2 V / cm / s ± 5%
Internal Resistance
5.8 kΩ ± 5%
Damping
0.7 ± 10%
Harmonic Distortion
≤ 0.2%
Working Temperature
Da –25°C a +55°C
Sensor Clamping
With blocking connector
Dimensions
 Diam. 128 mm h. 175mm (spike excl.)
Weight
2.3 Kg
Technical specifications subject to change without notice
Nat.Resonance Frequency
2 Hz ± 10%
Sensibility
2 V / cm / s ± 5%
Internal Resistance
5.8 kΩ ± 5%
Damping
0.7 ± 10%
Harmonic Distortion
≤ 0.2%
Working Temperature
Da –25°C a +55°C
Sensor Clamping
With blocking connector
Dimensions
Diam. 128 mm h. 175mm (spike excl.)
Weight
2,3 Kg
Technical specifications subject to change without notice
