CHE

Specially designed for small-scale crosshole surveys according to ASTM 4428, this compact hammer can be used to generate both P and S waves. The hammer can be loaded down using the steel cable and clamped to the requested depth by a pneumatic clamping system manually controlled by a lever from the surface. Simply pushing up the steel cable to execute the first shot, the trigger installed on the energizer will start the acquisition for the “P/S”. After that, you will have to drop the mass to make the acquisition with inverse polarity.

Cable reel with probe, 50m cable plus steel traction cable
Models
Methodologies

E-Commerce non attivo in questo momento



 STANDARD SYSTEM  INCLUDES:

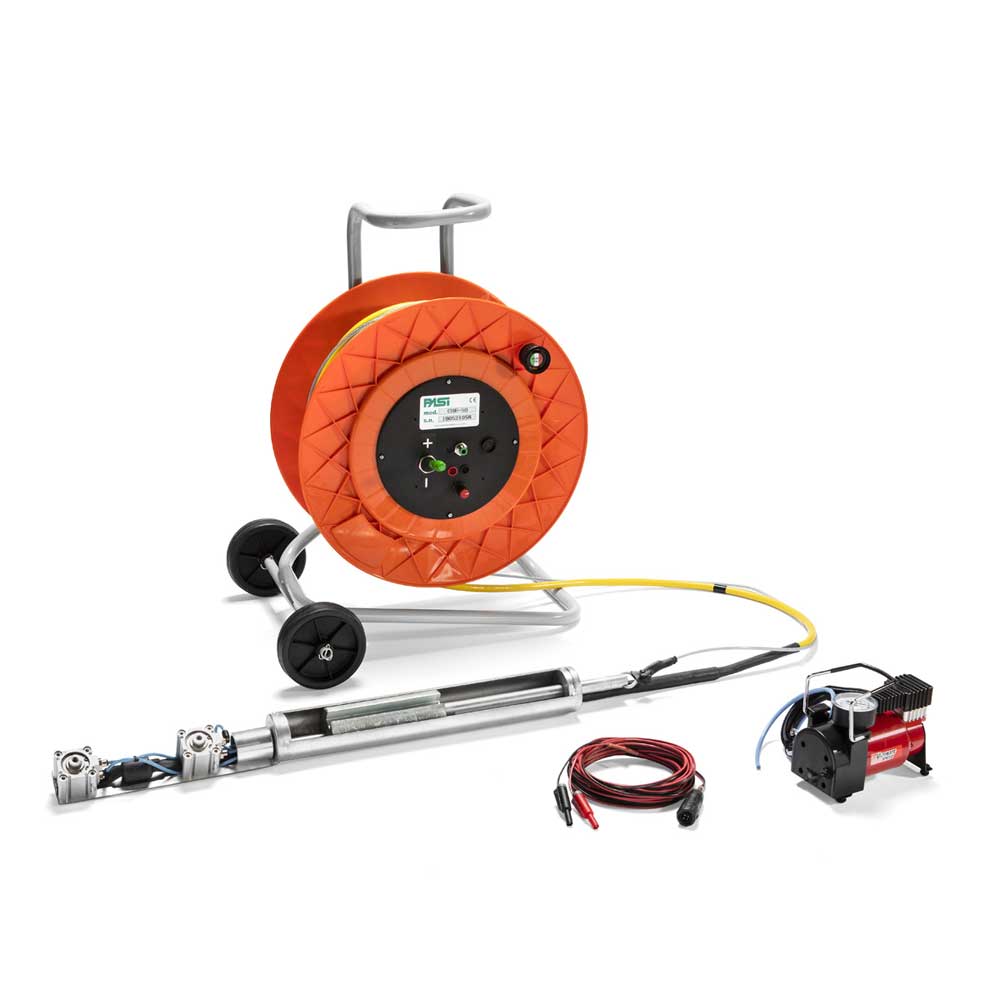

CHE-50:

  • Cable reel with probe, 50m of cable plus steel traction cable
  • Compressor (12V power supply - requires ext. battery. not included)
  • Trigger cable

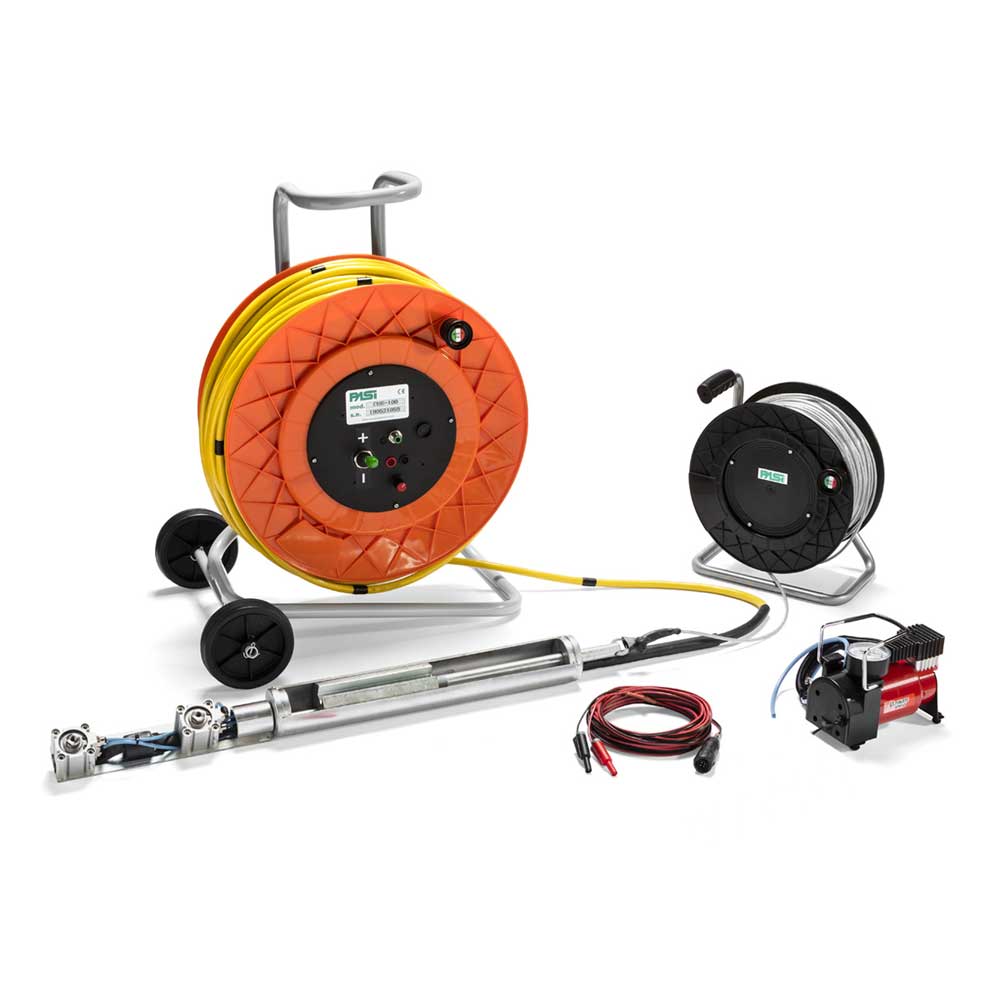

CHE-100:

  • Cable reel with probe, 100m of cable
  • Compressor (12V power supply - requires ext. battery, not included)
  • Trigger cable
  • Additional reel with 100m of steel traction cable
TECHNICAL
SPECIFICATIONS

CHE

1-YEAR WARRANTY

Probe Material
Galvanised iron
Cable length
50 / 100 m (on cable reel)
Probe Diameter
70mm
Probe Length
600mm
Hole diameter with standard spring
Min. 70mm, max. 80mm (> with optional adapter)
Probe Weight
3,5kg
Total Weight
15,5Kg (CHE-50), 24Kg (CHE-100)
Technical specifications subject to change without notice
Probe Material
Galvanised iron
Cable length
50 / 100 m (on cable reel)
Probe Diameter
70mm
Probe Length
600mm
Hole diameter with standard spring
Min. 70mm, max. 80mm (> with optional adapter)
Probe Weight
3,5kg
Total Weight
15,5Kg (CHE-50), 24Kg (CHE-100)
Technical specifications subject to change without notice
