WMS-INT

OIL/WATER INTERFACE LEVEL SENSOR

with flat cable graduated in mm

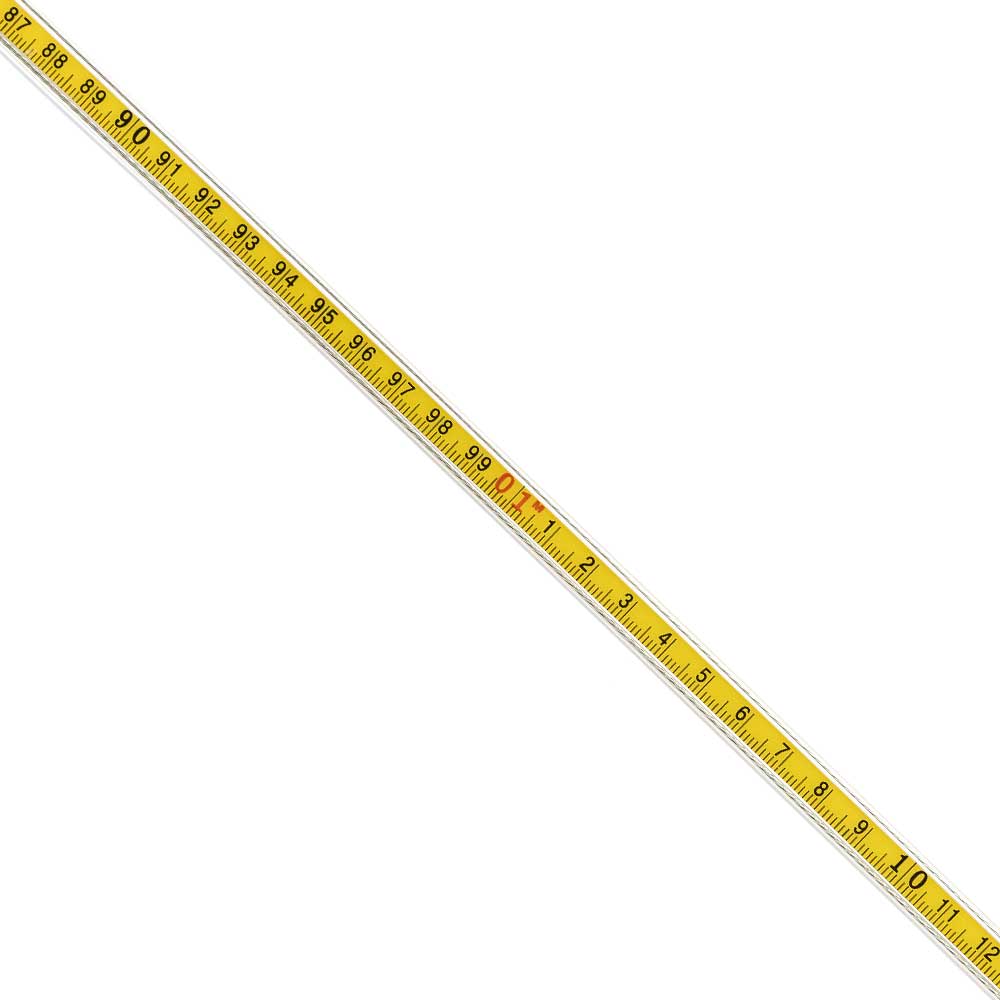

Interface meter with flat cable, stainless steel tape with 2 copper wires (10x2mm), coated with external anti-scratch protective film in transparent PUR. Graduation in mm in black colour, centimeter and decimeter indication in black colour, meter indication in red colour.

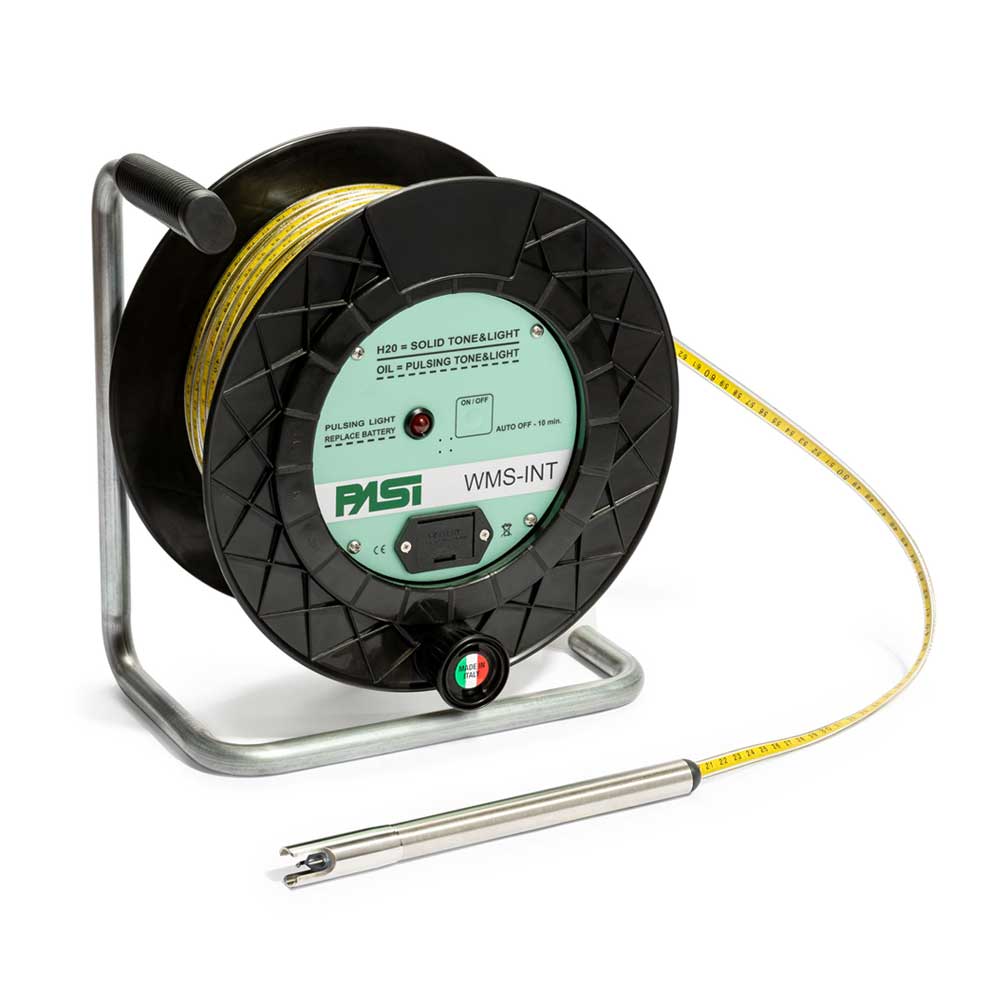

Portable instrumentation with a use similar to that of a water level indicator, but characterized by an optical probe that signals the presence of a pollutant or "product" (hydrocarbons, foam, trieline, etc.) which usually floats on the surface of the water inside wells and/or tanks or has deposited below it. When the probe is lowered into the well, an IR sensor is used to determine the presence of the product at the depth indicated on the special millimetric cable, while a conductivity sensor identifies the underlying water level. The passage between the two means is indicated by transition from an intermittent tone and a flashing light (“product” OR OIL) to a continuous tone (water).

  • Cable length 30m
  • PVC cable reel
  • Dimensions L25xP18xH35
  • Weight in kg 1,5
Models
Methodologies

E-Commerce non attivo in questo momento



ACCESSORIES  WMS   INT

Padded shoulder bag available in two different sizes, for water level indicators with 30-50-100-150m cable or for Well-Camera reels with 100 and 200m cable.


TECHNICAL
SPECIFICATIONS
WMS-INT



Graduation
1mm
Flat cable section
10x2mm

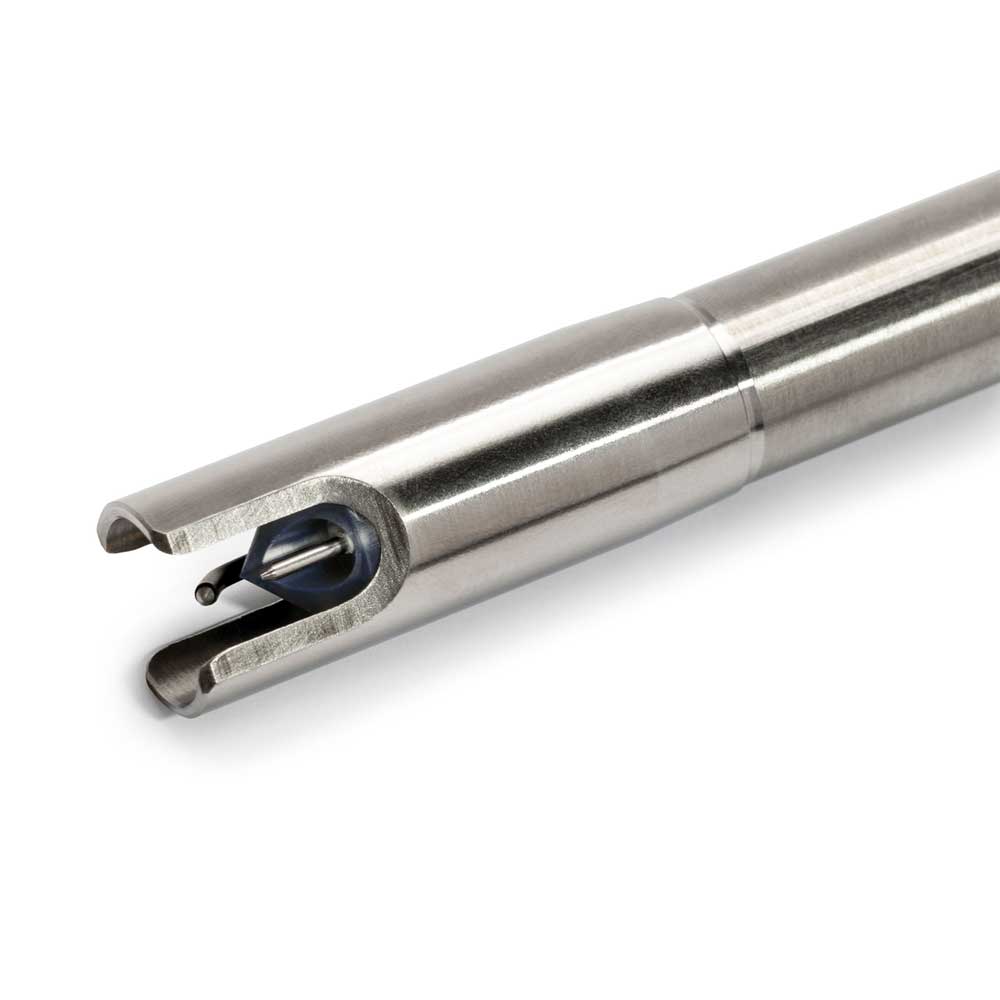

Probe sensors
Optical sensor and conductivity sensor

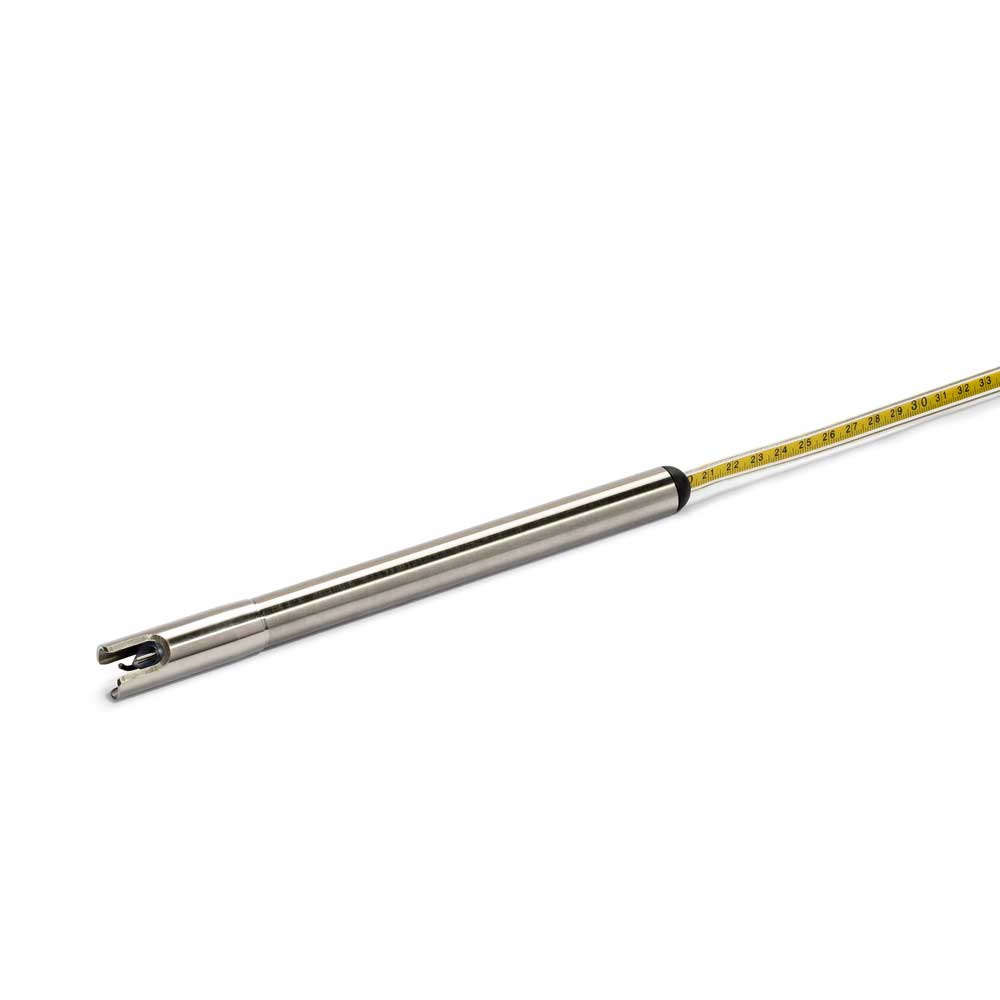

Probe diameter
19mm, in stainless steel
Probe length
220mm
Probe material
Body and protective cap made of stainless steel; Prism and cable closure made of photopolymer resin
User interface
Single button for switching on/off and settings
Operating temperature
from -20°C to +60°C

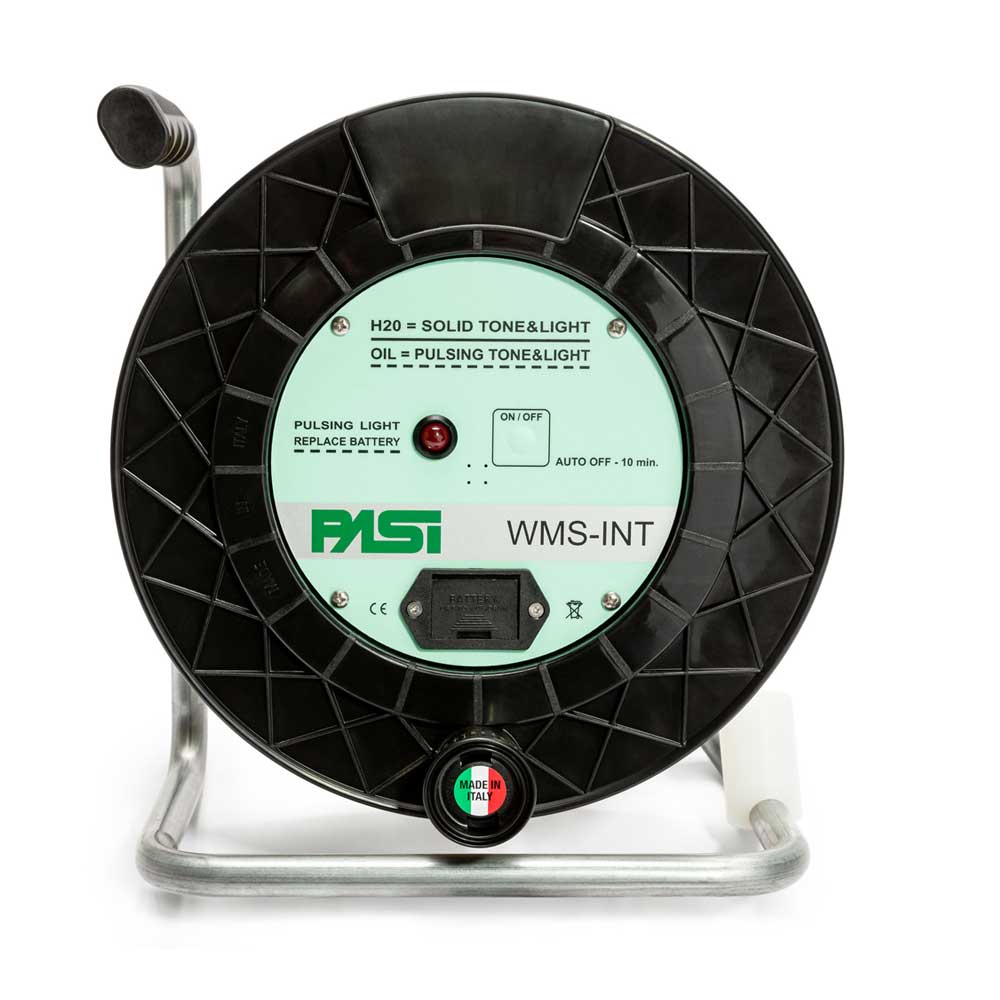

Acoustic signal and LED indicate the water level end the interface
Powered by 1x9V battery (with easy external access for substitution)
Battery life up to 70h (depends on use)
Auto Off after 10min
Available lengths: 30m, 50m, 100m
PVC cable reel
Technical specifications subject to change without notice
Graduazione
1mm
Sezione cavo tondo
10x2mm
Sensore di livello
Conduttivo
Sensore di interfaccia
Ottico IR (infrarosso)
Diametro sonda
19mm costruita in acciaio inox
Lunghezza sonda
220mm
Materiali sonda
Corpo e cappuccio protettivo in acciaio inossidabile; Prisma e fermacavo
in resina fotopolimerica.
Interfaccia Utente
Pulsante unico per accensione, spegnimento e setting delle impostazioni
Temp. d’utilizzo
-20°C a +60°C
Segnalatore acustico e visivo di raggiungimento livello e interfaccia
Alimentazione con batteria da 9V (estraibile dall’esterno per sostituzione)
Durata batterie fino a 70h (in funzione dell’utilizzo)
Auto Off dopo 10min
Lunghezze disponibili: 30m, 50m, 100m
Arganello in PVC
Specifiche tecniche soggette a variazioni senza preavviso
